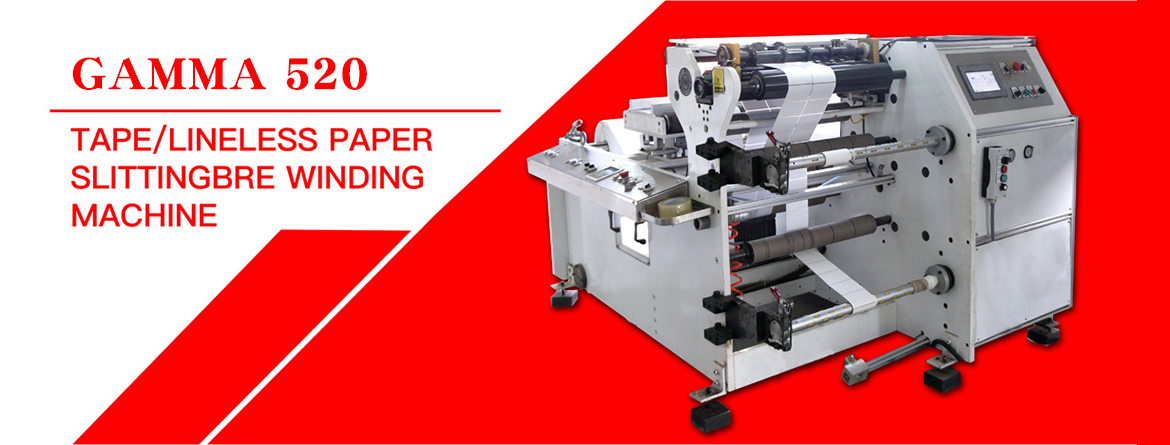

    • Gamma 520

    Features
    • FlexibilityThe Slit-520 Series optional with a high-precision automatic tool setting system. It is capable of changing the dutting width of different matereals in one-key operation; unwinding comfiguration multiple tension control modes; slitting configuration dedusting or glue removal device. All feed rollers are specislly treated with a anti-sticking coating; Winding with sliding type air shaft.
    • High-PrecisionSlitting precision, neat and tidy.
    • Multiple windingDifferent materials using different winding methods.

    Slitting Knife

    (Quickly change orders with the automatic cutting tool setting system.)

    Rewinding

    (Implementation of preset length automatic material)

    Unwinding

    (The material tension is controlled by a closed loop of the brake or servo motor.)


    Specification
    Feed Width (mm)
    520

    Unwinding Diameter (mm)
    1000

    Winding Width (mm)
    25-450

    Winding Diameter (mm)
    400

    Winding Core Size
    Unwinding Core Size-3
    (Winding core size according to the customer)
    Max Mechanical Speed (m/min)
    200
